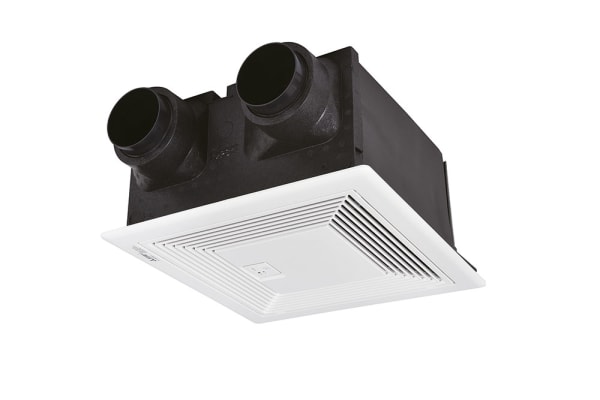

Lossnay Energy Recovery Single Room Fresh Air Ducted Ventilation

Indent 1-2 days

Code

VL-100ZSKRT-E

Brand

RRP

$1,635.00

Minimum quantity

1

$1,421.74

Description

The Ducted VL100ZSKRT-E Lossnay Fresh Air Energy Recovery Single Room Ventilation unit provides energy efficient ventilation to ensure individual rooms have a constant supply of healthy, fresh air with the additional benefit of energy efficient heat recovery at the same time. And because the unit is ducted in design, it means the system can be installed in the roof or attic space, so it is unobtrusive and hidden away. Wireless Remote Controller included.

Ceiling Mounted

This ducted model is specifically designed to provide energy efficient ventilation to ensure an individual room has a constant supply of filtered fresh air whilst minimising moisture build-up. Furthermore, incoming air is pre-warmed (or pre-cooled) so your existing heating appliance does not need to work as hard to reach desired temperatures.

Key Specifications of the VL100 Ducted

  • Up to 64% heat exchange efficiency
  • Low height 204mm
  • 100mm duct diameter
  • Lightweight and compact
  • Low noise operation from 25dB on low fan speed
  • Filter replacement notification
  • Air intake can be installed away from the unit in the most convenient location
  • Ideal for residential or small commercial applications with ceiling void or roof space

Balanced Pressure Heat Recovery Ventilation Solutions

Lossnay by Mitsubishi Electric, is an advanced Fresh Air Heat Recovery Ventilation System that captures and filters fresh outdoor air (as opposed to attic air) to replace indoor stale air for an all-round healthier, drier and warmer home. But what makes Lossnay so different from other ventilation systems is our patented Heat Exchanger, which is the secret to the heat recovery capabilities of the Lossnay ventilation unit and provides several important benefits.

Mitsubishi Electric

Specifications
Heat exchange system: Energy Recovery Ventilating System
Dimensions (WxDxH) 386 x386 x204 Unit  455 x 455 x 9 Grille
weight 6kg
Power Supply 230V Single Phase
Ducting Size 100mm
Input Power (Fan Lo-Hi) 15-32W
Air Volume (Fan Lo-Hi) 11.7 - 21.7 l/s
Temperature exchange efficiency (Fan Lo-Hi) 62-49%
Noise (Fan Lo-Hi) 25.5 - 40 dB

Note: Lossnay Ventilation Complies with Standards: AS/NZS 60335.2.80 and AS/NZS CISPR14.1
