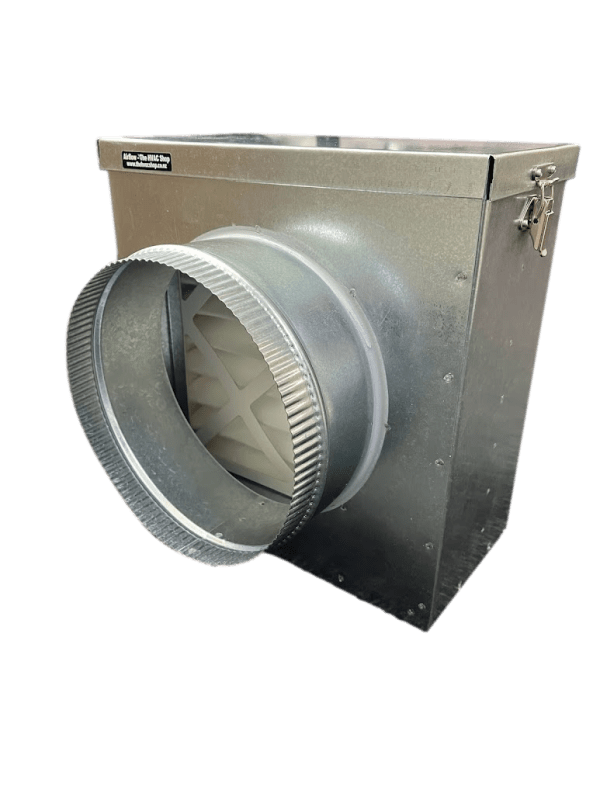

Inline Box G4 Filter 300Ø

The ILBF Filter Box is utilised in ventilation and air conditioning systems to filter out dust and other pollutants before they reach fans, motors, heaters, or areas that need ventilation.

The filter box is equipped with a G4 Disposable Filter. The housing of the filter box is made of galvanized sheet steel and has circular connections which are big end / small end for maximum airflow when fitting to solid pipe with toggle locks to close the lid.

The filter cassette can be used for both supply air and exhaust air.

---

Specifications:

Dimensions (Length / Depth / Width) = 400mm / 150mm / 400mm

Spigot Size = (Diameter / Length) 300Ø /100mm

Material = Steel

Filter = Disposable G4 Filter 392x392x45 (16x16x2)

Maximum/recommended final pressure drop: 250 Pa
Maximum temperature: 70°C
