Wall Fan Kit 150Ø 12 Volt
Available from Stock
Description

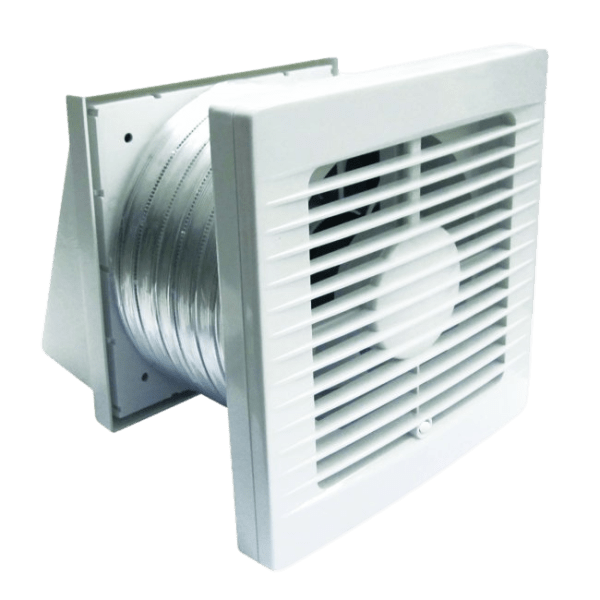

Manrose XP150LV
150Ø Wall Extractor Fan Kit
- This fan meets Healthy Homes requirements for Bathrooms.
Manrose Low Voltage Fans are suitable for installation within shower cubicles or within the splash area of a bath or laundry tub - where current regulations prevent the use of conventional fans.
These fans are powered by a SELV (Safety Extra Low Voltage) isolating transformer which converts the mains supply to 12 Volts. Manrose Low Voltage Fans can be used within Damp Zones 1, 2, or 3 and come in a range of sizes to suit shower rooms, bathrooms or ensuites. Able to be positioned right where steam/moisture is produced, they can achieve optimal extraction.
Low voltage Thru-Wall fan kits can be mounted in damp areas and are suitable for situations where the bathroom is on an external wall, or there is insufficient ceiling space for an inline fan.
Features
- Supplied with a SELV 12V transformer
- Includes the weatherproof cowl
- Designed for wall, these models are efficient and easy to install
- Compact design enables these fans to be installed unobtrusively into any wall (requires a minimum wall cavity of 110mm).
- These axial fans have ball bearing motors to prolong the life of the motor
- Circular Cut-Out Size 160Ømm
- Fascia Size 200x200mm
Power: 220 - 240V (LV models 12V)
Fan Performance: 101 l/s (364m3/hr)
Fan Wattage: 25 watts
Sound Level: 40 dB(A)
Max Operating Temp: 50°C
Rating: IPX4 (What is this?)
Installation requires a Qualifed Electrician
