Axial Plate Fan 300Ø 2P 1P 230V Forced (Exhaust)
Indent 3-5 Days
$637.39
Description
Mosswyn Air Square Plate Axial Fan – Recessed 300mm Forced Air
The Mosswyn Air 300mm Square Plate Recessed Axial Fan is a robust, compact axial fan designed for ventilation and equipment cooling applications where forced airflow is required.
Featuring a black coated sheet-steel impeller, external rotor motor and recessed square mounting plate with protective wire grille, the fan provides reliable airflow from a simple, durable assembly.
The motor is protected to IP44, with Class F insulation and internally wired overload protection. The manufacturer specifies an operating temperature range of -30°C to +60°C.
Specifications
| Specification | Details |
|---|---|
| Product Code | 130-K4M300-30FPF |
| Fan Type | Square Plate Axial Fan – Recessed |
| Airflow Direction | Forced Air |
| Impeller Diameter | 300mm |
| Plate Dimensions | 430mm x 430mm |
| Voltage | 230V, 1 Phase |
| Voltage Range | 198–242V |
| Motor Current | 0.42A |
| Motor Power | 90W |
| Motor Speed | 1350 RPM |
| Motor Protection | IP44 |
| Insulation | Class F |
| Impeller Material | Black coated sheet steel |
| Free Air Performance | 389 L/s |
| Sound Pressure Level | 49 dBA @ 3m |
| Operating Temperature | -30°C to +60°C |
| Overload Protection | Internally wired |
Typical Applications
- General ventilation
- Evaporators
- Condensers
- Chillers
- Water coolers
- Equipment and machinery ventilation
Airflow Direction
Forced Air

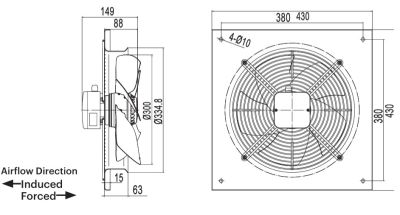

Air is pushed from the motor side through the fan and away from the motor, as shown in the airflow-direction diagram on the manufacturer’s data sheet
