Lossnay Wall Mounted Controller

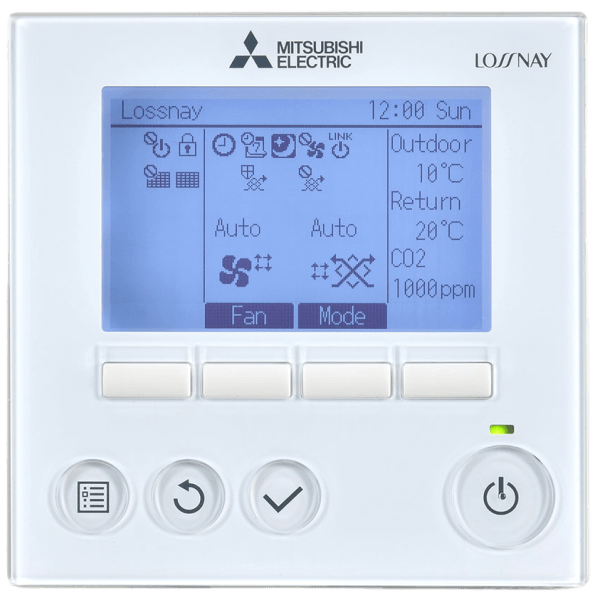

Mitsubishi Lossnay PZ-62DR-E – Wired 7 Day Controller

Product Overview

The Mitsubishi Electric PZ-62DR-E is a wall-mounted wired controller designed for convenient operation and scheduling of compatible Lossnay energy recovery ventilation systems.

Featuring an easy-to-read LCD display and programmable 7-day timer, the controller allows ventilation to be scheduled around building occupancy and daily requirements, helping to improve comfort and reduce unnecessary energy consumption.

Suitable for residential and commercial Lossnay installations.

Features

• Programmable 7-day timer

• Up to 8 separate start/stop patterns per day

• Easy-to-read LCD display

• Fan speed and airflow adjustment

• Heat recovery and bypass ventilation mode selection

• Daily and weekly ventilation scheduling

• Control of up to 15 compatible Lossnay units

• Wall-mounted wired installation

Specifications

• Model: PZ-62DR-E

• Product Type: Wired Lossnay Remote Controller

• Timer: 7-day programmable

• Daily Programmes: Up to 8 start/stop patterns

• Control Capacity: Up to 15 compatible Lossnay units

• Compatibility: Mitsubishi Electric LGH-RVX3-E and compatible LGH-RVS-E systems

• Installation: Wall-mounted, wired

Additional Information

The PZ-62DR-E controller is sold separately from the Lossnay ventilation unit.

A separate Lossnay controller may not be required when the ventilation system is integrated with a compatible Mitsubishi Electric air conditioning system using an appropriate wired controller.

Refer to Mitsubishi Electric's installation and technical documentation for compatibility and wiring requirements.
