Jetline 100 Centrifugal Inline Fan

Indent 1-2 days

Category

Inline Fans

Code

Jetline100

Brand

RRP

$400.00

Minimum quantity

1

$347.83

Description

Description

The Jetline is a high performance, low profile in-line fan featuring silent-block motor mounting to reduce vibrations and lower the sound level of operation.

The Jetline uses a quick fit mounting bracket for fast installations and is suitable for mounting in any position.

There are 6 models in the range matching standard duct sizes from 100 to 315mm diameter.

Features

  • High performance patented centrifugal impeller.
  • Optimised impeller, guide vane and outlet diffuser for low noise operation.
  • Designed for direct connection to standard diameter circular ducting.
  • Low profile, durable outer casing manufactured from galvanised sheet steel.
  • Robust, galvanised steel quick fit mounting bracket for fast installations.
  • Can be mounted in any position.
  • Includes plug and lead for easy installation.

Construction
Outer housing and foot mount are made of pressed galvanised steel providing a very robust construction. Internal housing and patented centrifugal impeller are from injected moulded plastic.

Motor
Type – Single-speed, squirrel cage induction motor.
Electricity supply – 220-240V, single-phase, 50/60Hz for 100-250 models. - 220-240V, single-phase 50Hz for 315 model.
Bearings - sealed for life, ball.
Speed-controllable using VA type speed controllers.
Class F Insulation, IP44.

Internal Protection
By fuse for 100-125 models, and for 150-315 models manual-reset thermal overload protection device in accordance with mandatory requirements for in-duct fans AS/NZS60335-2-80:2016.

All models are fully tested to ISO5801: Part1, 1997 for air flow and ISO 13347-3 2004 for noise.

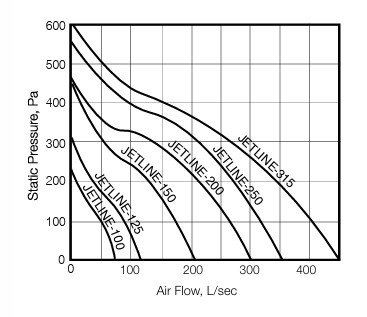

Performance Curve - JETLINE-100

Technical Data - JETLINE-100

Speed [rps] Avg. dBA @ 3m kWatts (Input) Amps Max.°C Approx. Weight [kg]
45 35 0.019 0.1 60 3

Sound Data

Type 63 125 250 500 1K 2K 4K 8K
Inlet 53 47 51 50 51 47 47 35
Outlet 53 48 53 50 48 45 45 35
Breakout 42 29 30 27 32 30 30 18

Dimensions

A B C D E F G H
276 306 256 181 95 190 98 70

*All dimensions in mm, unless otherwise stated

Wiring Diagram

Diagram shown is for single-speed only.
