Adjustable Galvanised Elbow / Bend – 500Ø
(Often called a self Aligning Bend)

Flexible Direction Changes for Round Ductwork

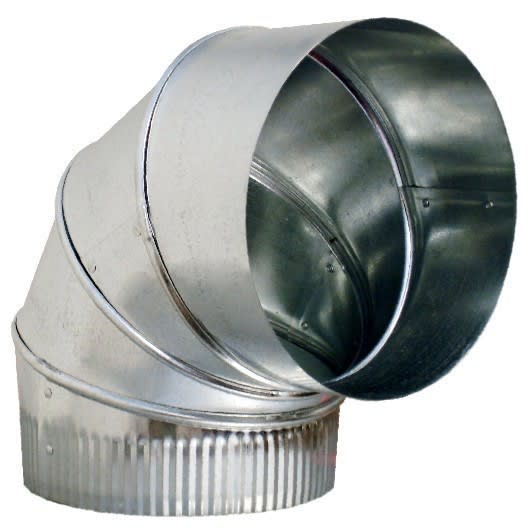

The Airflow Adjustable Elbow / Bend 500Ø is a practical round duct fitting for creating changes in direction from 0° through to 90°.

Manufactured from 0.55 mm galvanised steel, the rotating segmented design allows the angle to be easily set to suit the duct route. It is particularly useful where rigid ductwork needs to change direction or work around framing, services and other obstructions.

Specifications

Specification	Details
Diameter	500 mm
Material	Galvanised Steel
Material Thickness	0.55 mm
Adjustable Angle	0° – 90°
Construction	5 Segment*

*Sizes from 450–600 mm are manufactured with 5 segments.

Features

• Adjustable from 0° to 90°
• Strong 0.55 mm galvanised steel construction
• Easily set to the required angle
• Suitable for rigid round ductwork
• Can be used in conjunction with flexible duct
• Available in a wide range of diameters
