Roof Fan 150Ø 2 Speed Supply

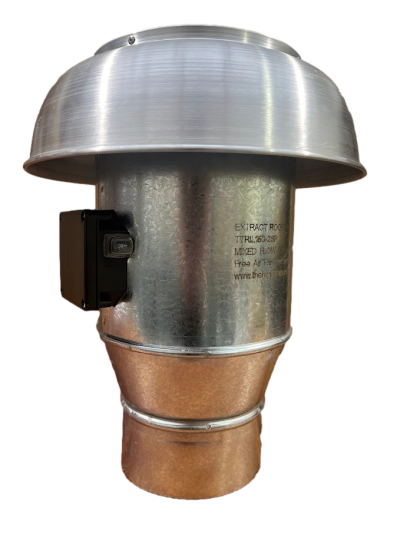

RIL150 150Ø 2-Speed Supply Roof Fan

Description
The RIL150 is a high-performance, low-noise supply roof fan designed for effective ventilation over longer duct runs. Featuring a powerful mixed flow fan, it offers excellent airflow with minimal noise transmission inside the building, ideal for residential and commercial applications where quiet operation is essential. As the unit is roof-mounted, indoor noise is kept to a minimum.

Typical Applications
Perfect for supplying air to:

• Kitchens
• Bathrooms
• Ensuites
• Laundries
• Other residential or commercial wet areas

Fan Details

• Impellers: Mixed flow impeller
• Free Air Fan Performance: 540m³/ hr 150 l/sec (High)
• Installed decibel rating: 42 DB(A) @ 3m
• Speed Control: 2 Speed Switch
• Casing: Fully weatherproof galvanized

Technical Specifications

• Part Number: TTRIL2SP150
• Voltage: 230V | Phase: 1Ø
• Input Power: 50W (high) / 44W (low)
• Airflow (Free Air): 150 L/s
• Sound Pressure Level @ 3m: 42 dBA (at full speed)
• Type - 2-speed, squirrel cage, capacitor run.
• Electricity supply - 230V, single-phase, 50Hz.
• Class B insulation, IP44.
• Bearings - Ball.
• Speed-controllable using VA type speed controller in high-speed setting only.
• Internal Thermal Protection
• Manual-reset thermal overload protection device in accordance with mandatory requirement for in-duct fans AS/NZS60335-2-80:2016

Testing

• Air flow to ISO5801:Part1, 1997
• Noise to BS848:Part 2, 1985
• Meets requirements of AS/NZS60335-2-80:201
