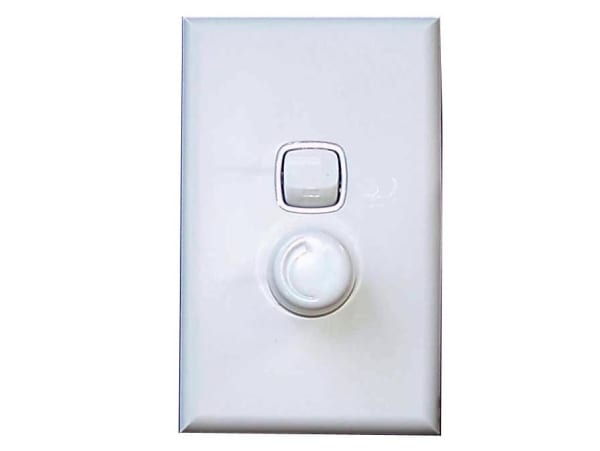

VA8.0 Speed Controller Variable Fan Max Load 8 Amp

VARIABLE SPEED CONTROLLER for Single Phase Motors
The VA range is an electronic type speed-controller which provides infinite variation of fan speed from 100% down to approximately 30% of full speed.

The VA range, being triac-type controllers, can cause an electronic hum particularly at low speeds. The VA range is generally suitable for use with any speed-controllable single-phase motors. Ensure the motor amperage does not exceed the rating of the controller. (Do not use with a EC fan)

When used to control a number of identical fans the sum of the full load amps of all the connected fans must not exceed 85% of the maximum rating of the controller.

The fans should be identical. Power consumption is reduced by up to 70%. The motors must be designed for speed control.

Warning Check with our Sales Department before using the VA controllers with run-on timers.

Note To minimise electronic hum from larger PSC (Permanent Split Capacitor) motors, a constant active is connected to the start winding via the capacitor and the run winding is regulated by the speed controller. (4 wire connection) A PSC motor is sometimes referred to as a Capacitor Run motor.

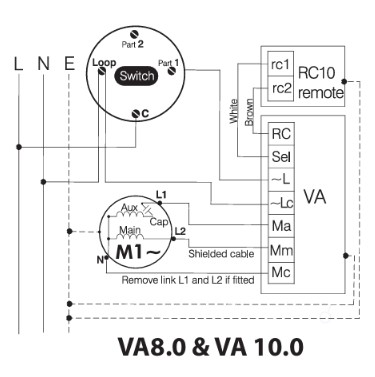

WIRING DIAGRAMS
