WING EC Controller

WING EC Controller

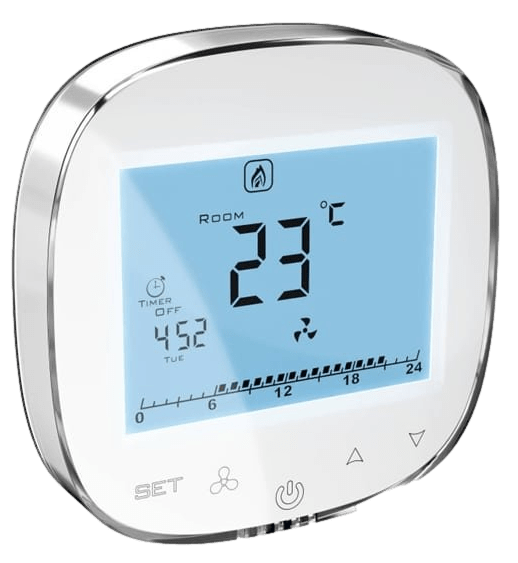

HMI-WING is a control panel, suitable for all WING curtain types. The panel is equipped with an interface operated by the ModbusRTU protocol for easy integration with building management systems (BMS).

Specification:

● used for control all types of WING EC curtains
● touch control panel
● the main on / off switch (ON / OFF)
● three-stage adjustable fan speed of the EC motor
● built-in thermostat with possibility weekly programing
● continuous mode
● function of heating and ventilation
● two-stage adjustable of heating power
● RS 485 with ModbusRTU

Suggested cross sections of electrical cables:

● L, N : 2x1 mm2
● H1, H2 : 2x1 mm2
● AO, GND : 2x0,5 mm2 LIYCY
● Door sensor : 2x0,5 mm2 LIYCY
● RS 485 : 3x0,75 mm2 LIYCY

Outputs:

● 1 analog output 0-10V (8 bit, Imax = 20 mA)
● 2 relays outputs (250 VAC, AC1 500 VA dla 230 VAC)

Inputs:

● 1 digital input type “dry contact”, Imax = 20 mA

Parameters

Unit Description
device operation   capacitive touch buttons
power supply V 230 V
temperature measurement ⁰C -10 °C ... +99 °C
temperature of working environment ⁰C 10 - 60 ⁰C
humidity of working environment % 10 - 90% without condensation
communication   Modbus RTU

Indent 1-2 days
