Rubber Bobbin Mount – 40 × 30mm – M10

Product Code: MM4030-60M10

Product Overview

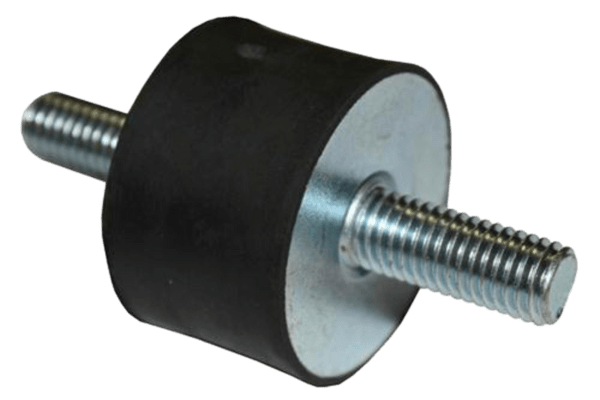

Rubber bobbin vibration mount designed to reduce vibration transfer between equipment and supporting structures.

This mount has two male M10 studs and is suitable for use in compression or shear applications.

Commonly used with fans, motors, air conditioning equipment, pumps and other mechanical equipment where vibration isolation is required.

Specifications

Specification	Details
Product Code	MM4030-60
Brand	Radius
Mount Type	Rubber bobbin mount
Rubber Diameter	40mm
Rubber Length	30mm
Thread	M10
Stud Length	25mm
Hardness	60 Shore A
Maximum Load	62kg
Maximum Deflection	2.6mm
Stud Configuration	2 × male studs
Quantity	1

Application Notes

• Load ratings are based on compression loading

• Suitable for use in compression or shear applications

• Select the mount to suit the equipment weight and loading arrangement

Also Known As

• Vibration mount

• Vibration isolator

• Cotton reel mount
