Gripple XP2 Express Hanger – 3m Loop – 10 Pack

Gripple XP2 Express Hanger – 3m Loop – 10 Pack

Product Code: XP2-LG-3M-10PK

Product Overview

The Gripple XP2 Express Hanger is a fast, adjustable wire suspension system suitable for HVAC, mechanical and electrical applications.

Supplied as a ready-to-use kit, the XP2 features a keyless adjustment mechanism, allowing the suspension height to be quickly set and adjusted without a separate setting tool.

Each hanger is supplied with a 3 metre wire and loop end fixing, making it suitable for suspending from appropriate beams, purlins, roof trusses and other suitable structural fixing points.

Supplied in a pack of 10.

Features

• 3m wire length

• Loop end fixing

• 45kg safe working load per hanger

• 5:1 safety factor

• Keyless adjustment

• No adjustment tool required

• Quick and simple height adjustment

• Compact, lightweight design

• Supplied as a ready-to-use suspension kit

• Suitable for HVAC, mechanical and electrical applications

Specifications

• Model: Gripple Express No.2 – XP2

• Product code: XP2-LG-3M-10PK

• Wire length: 3m

• End fixing: Loop

• Safe working load: 0–45kg

• Safety factor: 5:1

• Pack quantity: 10

• Application: Suspension of HVAC, mechanical and electrical services

Installation

The loop end fixing can be secured around a suitable structural support using a simple choke-loop arrangement.

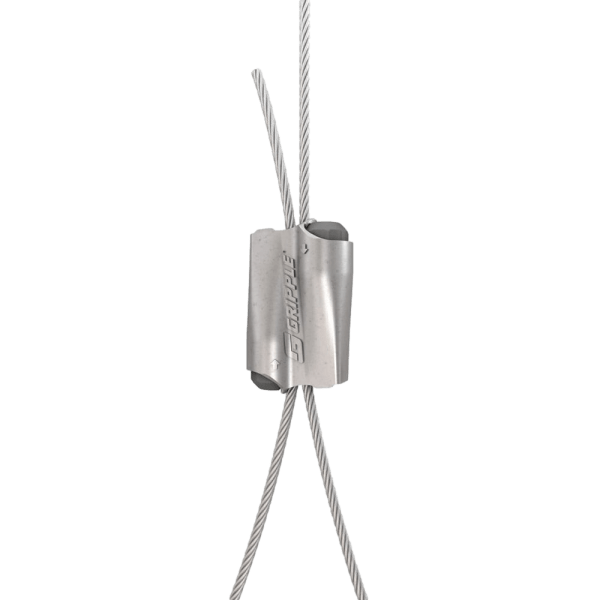

The XP2 locking device provides rapid adjustment of the wire without requiring a separate adjustment tool.

A minimum of 75mm of tail wire must extend from the hanger after installation.

The supporting structure and fixing point must be suitable for the applied load. Always install in accordance with Gripple installation requirements and specified safe working loads.

Ideal For

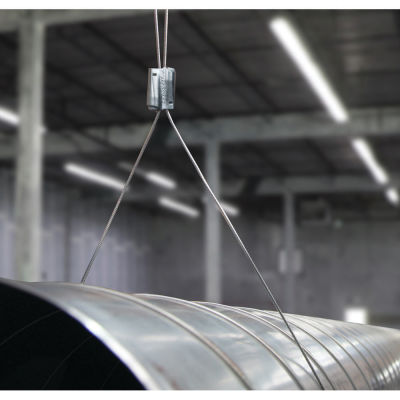

• HVAC ductwork

• Ventilation equipment

• Mechanical services

• Electrical services

• General building services suspension
