ProVent 150mm In-Line Duct Mounted Fan – 2 Speed

The ProVent RIL-150SW is a compact 150mm in-line duct mounted fan designed for supply or exhaust air applications in homes, apartments and commercial buildings.

Its mixed-flow impeller provides airflow of up to 562 m³/hr (156 L/sec) on high speed. The fan includes an externally mounted 2-speed switch, allowing selection between high and low fan speeds.

The fan body can be removed from its support brackets for maintenance or repair without disturbing the connected duct system. An integrated mounting foot and plug-and-lead connection are also provided.

Specifications

Specification	Details
Product Code	RIL-150SW
Brand	ProVent
Fan Type	In-line duct mounted fan
Connection Size	150mm nominal
Actual Connection Diameter	147mm
Impeller Type	Mixed-flow
Speeds	2
Airflow – High	562 m³/hr / 156 L/sec
Airflow – Low	468 m³/hr / 130 L/sec
Fan Speed – High	2500 RPM
Fan Speed – Low	2150 RPM
Sound Level – High	45 dB(A) @ 3m
Sound Level – Low	38 dB(A) @ 3m
Power – High	50W
Power – Low	44W
Voltage	230–240V
IP Rating	IP44
Speed Control	External mounted 2-speed switch

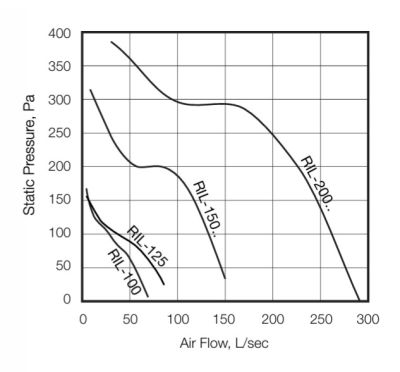

Airflow figures are free-air performance without ducting or additional fittings.

Dimensions

Dimension	Measurement
A	112mm
B	60mm
C	127mm
D	80mm
E	295mm
F Ø	147mm
G Ø	203mm
H	225mm
J	239mm

All dimensions are in millimetres.

Suitable For

Suitable for both supply and exhaust air applications where a compact in-line duct fan is required.

Typical applications include residential, apartment and commercial ventilation systems.

Confirm duct sizing, airflow requirements and electrical suitability before ordering.

Product Features

• High-performance mixed-flow impeller

• Externally mounted 2-speed switch

• Up to 156 l/s airflow

• Removable fan body for easier maintenance or repair

• Fan body can be removed without disturbing the duct system

• Integrated mounting foot

• Plug and lead connection

• Suitable for supply or exhaust air

• IP44 rated

• Speed-controllable using VA type speed controller in high speed setting only.

Testing
Airflow to ISO5801:Part1, 1997
Noise to BS848:Part 2, 1985
Meets requirements of AS/NZS60335-2-80:2004
