Flat Channel Low Profile Connector 110 x 54mm

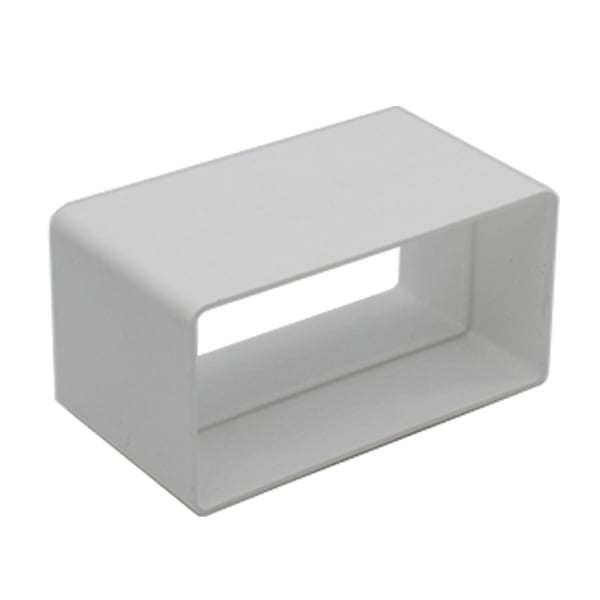

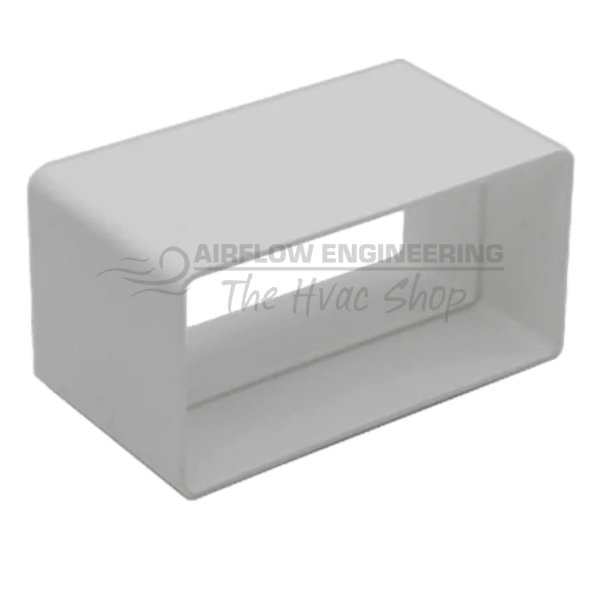

Rectangular Duct Joiner – 110 × 54mm (Female to Female)

The 110 × 54mm Rectangular Duct Joiner is designed to connect two lengths of flat channel ducting in a straight line. The joiner fits externally, allowing duct lengths to slide into the connector for a secure, aligned connection.

The internal rectangular connection measures 110 × 54mm, suitable for 110 × 54mm outside dimension ducting. Equivalent in airflow capacity to 100mm round duct, it is ideal for low extraction rate applications such as laundry and toilet ventilation. The 5,300mm² cross-sectional area ensures efficient airflow for short, straight runs connecting to a 100mm round spigot.

---

Features

• External connection size: 110 × 54mm

• Suits 110 × 54mm O.D. flat channel duct

• Connects two duct lengths in a straight line

• Low-profile system for concealed installations

• Equivalent to 100mm round duct

• Internal fitting colour may vary (White transitioning to recycled Grey). Material performance remains unchanged

---

Pressure Loss (Straight Length)

• 10 L/s – <1 Pa

• 25 L/s – 1.4 Pa

• 60 L/s – 6.4 Pa

---

Applications

• Laundry ventilation

• Toilet and bathroom extraction

• Short, straight duct runs

• Domestic low airflow extraction systems
