Air Pressure Switch Differential
Available from Stock
$117.39
Description

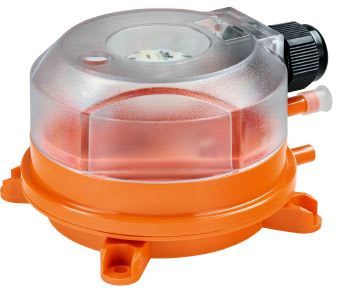

The Belimo 01APS-10R is a Differential Pressure Switch.
Used to measure the overpressure, vacuum, and Differential Pressure of air or other noncombustible, nonaggressive gases in HVAC and energy management applications.
| Electrical data | Electrical connection | Terminals for wire 0.5...1.5 mm² |
| Cable entry | Cable Gland Cap Nut with strain relief Ø5...10 mm | |
| Functional data | Output signal switch note | Contact current max.1.0 A (0.4) / AC 250 V |
| Communicative control | Modbus RTU (Details see separate document "Sensor Modbus Register") | |
| Media | Air | |
| Measuring data | Measured values | Differential pressure |
| Measuring media | Air, non-combustible and non-aggressive gases | |
| Accuracy pressure | ±15% (tolerance for upper and lower switching pressure) | |
| Overload range | 10 kPa | |
| Burst pressure | 10 kPa | |
| Materials | Housing | Bottom Part: PA 6.6 |
| Top Cover: PS |
*Duct termination kit (2m of hose, 2x pilot tubes & fixing screws) optional extra
