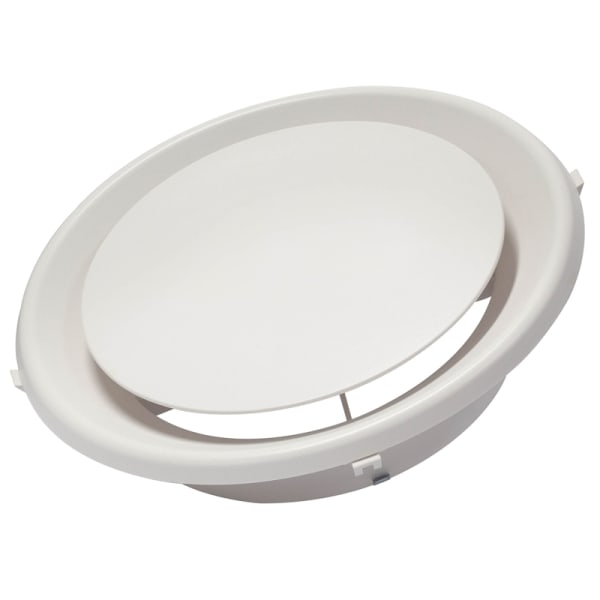

Round Diffuser 200Ø White

200 diameter white ceiling diffuser
Spigot 195mm diameter
Spigot height 80mm
Overall measurement 330mm diameter
Gib Cutout 285mm diameter

Suitable for commercial and domestic use. Can be used effectively in heating or cooling applications

• 360 Degree Air Delivery – For all temperatures.
• Adjustable Airflow – By turning the cone centre.
• Easy Installation, removing and maintaining.
• Scratch Resistant Surface – Made from ABS plastic.

Applications

Suitable for commercial and domestic use. Can be used effectively in heating or cooling applications. For Reverse cycle air-conditioning, heating and ventilation applications.

1. Mark and Cut the hole
2. Fix flexible duct to the diffuser
3. Open those toggle clips on the diffuser
4. Raise diffuser to the ceiling ensuring that all toggle clips are in contact with ceiling
5. Push upwards until clips lock diffuser in place.
