Baby Linear 200Ø Complete Set (Plastic)

Baby Linear Complete Plastic Set

Everything You Need for Efficient Air Distribution

Our Baby Linear Complete Set includes everything you need for a seamless air distribution solution, making it ideal for both domestic and light commercial applications. With easy installation and a sleek, modern design, this set delivers both performance and aesthetic appeal.

Includes:

• 1 x Grille
• 1 x Boot 200Ø
• 1 x Clip Set

Key Features:

• One-Piece Construction: Eliminates unsightly joins for a cleaner look.
• Durable & Scratch-Resistant: Made from moulded plastic that won’t corrode or deteriorate over time.
• Cost-Effective: Significantly more affordable than aluminum diffusers.
• Easy Installation: Quick and straightforward setup for convenience.
• Fits Commercial Ceiling Grids: Perfect for standard grid installations.
• Lightweight & Sturdy: Built with rigid construction for lasting durability.
• Paintable Finish: Standard ceiling white, can be painted to match your décor.
• 250Ø Boots Available: Available in 250Ø connections to fit your needs.

Construction:

• Diffuser: Moulded from white ABS plastic for durability and strength.
• Boot/Adaptor: Black ABS plastic for a seamless look and reliable function.
• Boot Clips: Made from Acetal plastic for secure attachment.
• Grille: Can also be supplied separately for bulkhead, wall and door installations.

Applications:

• Domestic & Light Commercial: Ideal for reverse cycle air conditioning systems.
• Versatile Installation: Suitable for ceiling, commercial T-Bar, bulkhead, wall, and standard door installations (Note: For door installations, the Baby Linear grille does not provide full privacy and is not suitable for door thicknesses less than 32mm).

---

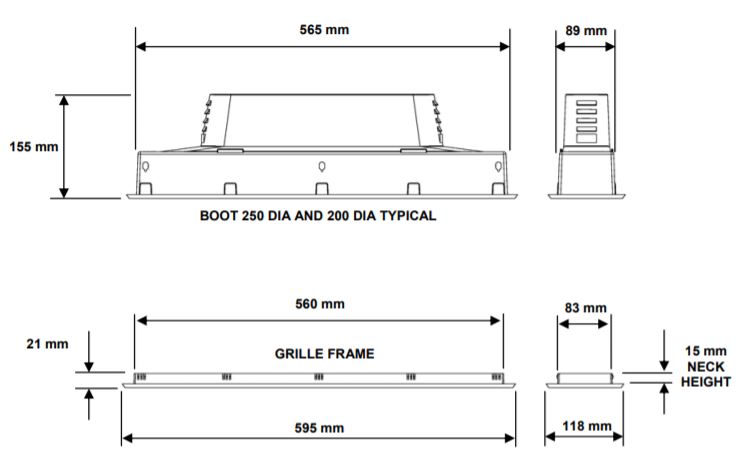

Specifications - Grille:

Dimensions Neck (Length / Depth / Width) = 555mm / 20mm / 86mm

Dimensions Face (Length / Depth / Width) = 590mm / 20mm / 120mm

Flange Thickness = 20mm

Material = ABS Plastic

Finish = White Powder Coat

Thickness of Face Plate = 5mm

Dampenable at Grille Face = No

---

Specifications - Boot:

Material: Black ABS plastic
Spigot Diameter: 200ø mm
