Product Overview

Compact, Quiet and Efficient Air Extraction

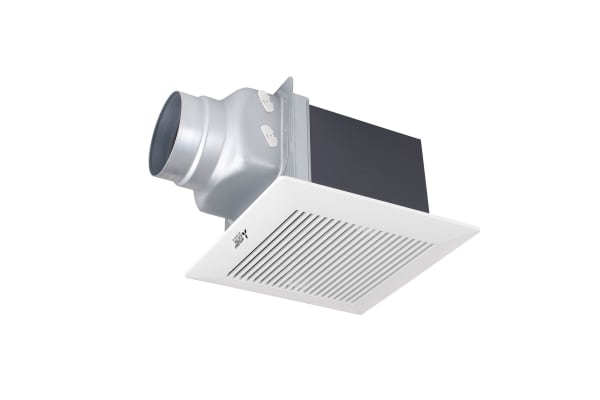

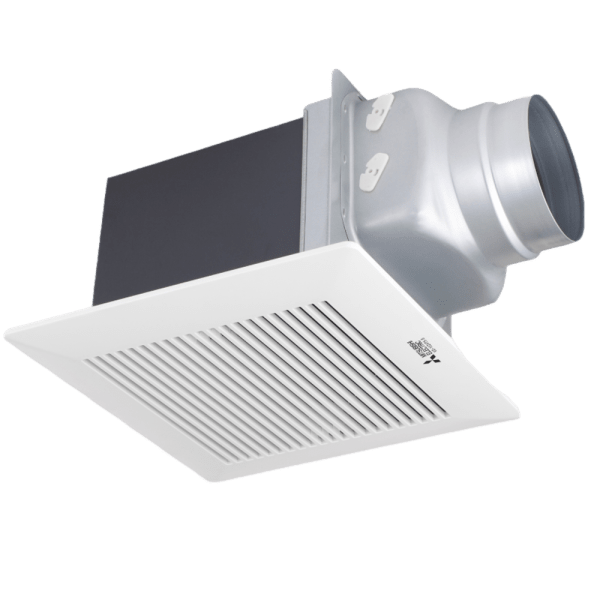

The Mitsubishi Electric VD-15Z Ducted Exhaust Fan provides reliable, low-noise ventilation for ensuites, bathrooms, laundries and medium-sized utility spaces.

Delivering 47.7 l/s (172 m³/h) of airflow at just 30 dB(A), this compact fan efficiently extracts stale air, unwanted odours and moisture-laden air, helping maintain a fresher, more comfortable indoor environment.

Featuring a durable ball bearing motor and Mitsubishi Electric's Dual Barrier Coating Technology on the Sirocco fan, the VD-15Z is designed for dependable performance and easy maintenance.

Supplied with a sleek white plastic grille, the fan provides a neat, discreet ceiling finish.

Key Features

Quiet and Efficient Ventilation

Delivers 47.7 l/s of air extraction at just 30 dB(A), making it ideal for ensuites, bathrooms and laundries where effective ventilation and low operating noise are important.

Effective Moisture and Odour Extraction

Extracts humid, stale air from bathrooms and laundries, helping reduce moisture build-up, condensation and unwanted odours.

Energy-Efficient Operation

Consumes just 13W, providing effective everyday ventilation with low power consumption.

Dual Barrier Coating Technology

The Sirocco fan features Mitsubishi Electric's Dual Barrier Coating Technology, designed to help reduce the build-up of dust and dirt on the fan blades.

Durable Ball Bearing Motor

Equipped with a ball bearing motor for reliable, long-lasting operation.

Compact and Discreet Design

• White plastic grille for a clean ceiling finish.

• Compact construction suitable for residential applications.

• Lightweight design weighing 3.4kg.

• Suitable for connection to 100mm ducting.

• Designed for ensuites, laundries and medium-sized spaces.

Specifications

Specification	Details
Model	VD-15Z
Fan Type	Ducted Exhaust Ventilation Fan
Recommended Application	Ensuites, laundries and medium-sized spaces
Airflow	47.7 l/s (172 m³/h)
Noise Level	30 dB(A)
Power Consumption	13W
Rated Current	0.06A
Power Supply	230V / 50Hz
Fan Speed	725 RPM
Blade Diameter	150mm
Duct Connection	100mm
Weight	3.4kg
Grille Type	White plastic
Motor	Ball bearing

Applications

Ideal for residential spaces requiring effective air extraction, including:

• Ensuites and bathrooms

• Laundries

• Toilets

• Medium-sized utility rooms

Important Information

• 100mm ducting required.

• External weather grille is not included and must be purchased separately.

• Airflow figures are manufacturer-rated; actual airflow will depend on ductwork and system resistance.
