RIL 200Ø Provent Inline Mixed Flow Fan
Available from Stock
Description
ProVent 200mm In-Line Duct Mounted Fan – 2 Speed
The ProVent RIL-200SW is a compact 200mm in-line duct mounted fan designed for higher-airflow supply or exhaust applications in homes, apartments and commercial buildings.
Its mixed-flow impeller provides airflow of up to 1040 m³/hr (289 L/sec) on high speed. The fan includes an externally mounted 2-speed switch, allowing the airflow to be selected to suit the application.
The fan body can be removed from its specially designed support brackets for maintenance or repair without disturbing the connected duct system. An integrated mounting foot and plug-and-lead connection are also provided.
Specifications
| Specification | Details |
|---|---|
| Product Code | RIL-200SW |
| Brand | ProVent |
| Fan Type | In-line duct mounted fan |
| Connection Size | 200mm nominal |
| Actual Connection Diameter | 198mm |
| Impeller Type | Mixed-flow |
| Speeds | 2 |
| Airflow – High | 1040 m³/hr / 289 L/sec |
| Airflow – Low | 846 m³/hr / 235 L/sec |
| Fan Speed – High | 2500 RPM |
| Fan Speed – Low | 2000 RPM |
| Sound Level – High | 47 dB(A) @ 3m |
| Sound Level – Low | 42 dB(A) @ 3m |
| Power – High | 120W |
| Power – Low | 100W |
| Voltage | 230–240V |
| IP Rating | IP44 |
| Speed Control | External mounted 2-speed switch |

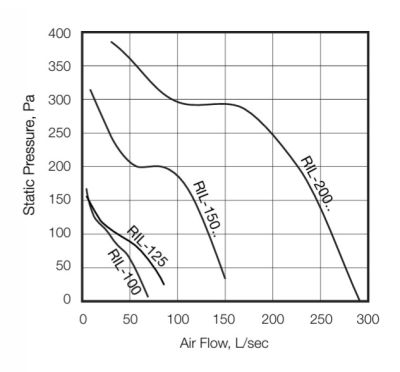

Airflow figures are free-air performance without ducting or additional fittings.

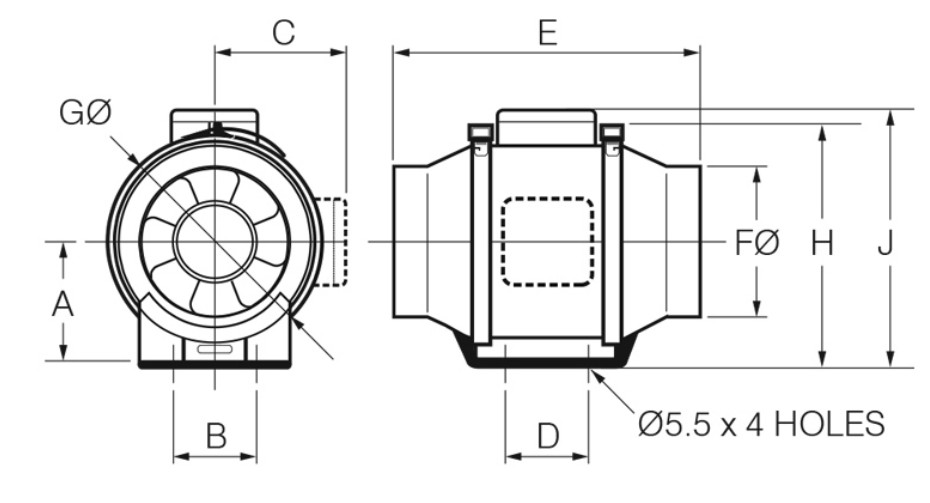

Dimensions
| Dimension | Measurement |
| A | 124mm |
| B | 94mm |
| C | 141mm |
| D | 100mm |
| E | 302mm |
| F Ø | 198mm |
| G Ø | 220mm |
| H | 251mm |
| J | 265mm |
All dimensions are in millimetres.
Suitable For
Suitable for both supply and exhaust air applications where a higher-capacity in-line duct fan is required.
Typical applications include residential, apartment and commercial ventilation systems.
Confirm duct sizing, airflow requirements and electrical suitability before ordering.
Product Features
- High-performance mixed-flow impeller
- Externally mounted 2-speed switch
- Up to 289 l/s airflow
- Removable fan body for easier maintenance or repair
- Fan body can be removed without disturbing the duct system
- Integrated mounting foot
- Plug and lead connection
- Suitable for supply or exhaust air
- IP44 rated
Speed-controllable using VA type speed controller in high speed setting only.
Testing
Air flow to ISO5801:Part1, 1997
Noise to BS848:Part 2, 1985
Meets requirements of AS/NZS60335-2-80:2004
