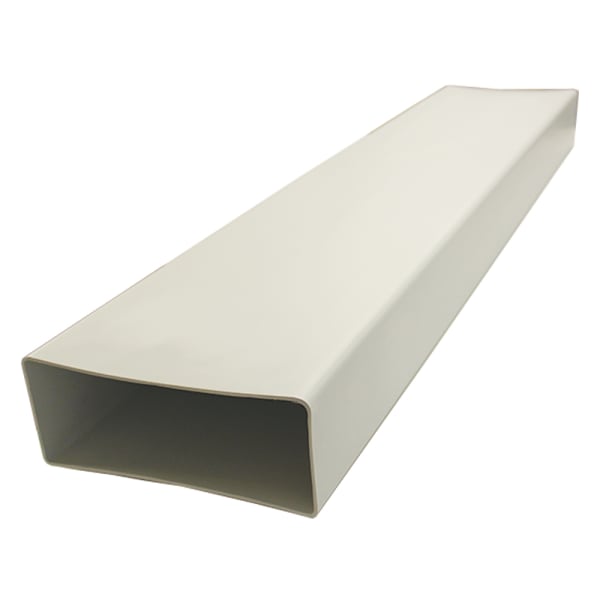

Flat Channel Duct Low Profile 204x60mm x 1.5m

Flat Channel Duct – 204 × 60mm × 1.5m

The 204 × 60mm Flat Channel Duct (equivalent to 125mm Ø round duct) is part of the Low Profile Flat Channel Ducting System, designed for concealed domestic and light commercial ventilation. Its low-profile design allows it to be discreetly installed along the top of wall units, within ceiling voids, or inside wall cavities, providing versatility while remaining unobtrusive. All system components are manufactured from flame-retardant material.

Pressure Loss (Straight Run)

• 10 L/s – <1 Pa

• 25 L/s – 1.5 Pa

• 60 L/s – 78 Pa

Features

• Low-profile design for concealed installations

• Equivalent to 125mm Ø round duct

• Smooth internal walls for efficient airflow

• Durable, flame-retardant construction

• Compatible with the Low Profile Flat Channel Ducting System

• Colour: White (internal fittings may transition to recycled Grey; performance unchanged)

Applications

• Concealed domestic and light commercial ventilation

• Laundry and bathroom extraction

• Short, straight duct runs in confined spaces

• Low airflow extraction systems
