F886U4500 4500w U Form 758mm

Manufactured 1 week+

Category

F886 Series

Code

F886U4500

Brand

RRP

$200.00

$173.92

Description

Thermofin 8mm F886 Series
F886U4500 4500 watts
758mm max reach
63mm between terminals

SHEATH WATTS DENSITY
133kW/m2 (86W/in2) Fin and sheath total 8kW/m2 (11.5W/in2) at 240 Volts.

OPERATING TEMPERATURES
Maximum permissible temperature of element when operating is 400 deg C. Element will not exceed 400 deg C in air with an ambient temperature of 20 deg C. Minimum air velocity of 3 metres/sec through face area of duct is recommended.

CONSTRUCTION
Continuous spiral stainless steel fin brazed 8mm dia steel sheathed tubular element. Dia. Over fin 25mm. Finning pitch 5.0mm.

FINISH
Annealed 304 Stainless Steel.

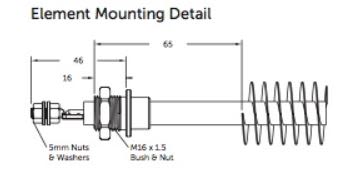

MOUNTING
Nickel plated 16mm conduit bushes x 16mm long thread. Clearance hole of 18mm required. Nuts and washers included
