F1129W2500 2500w W Form 456mm
Available from Stock
$160.86
Description
Thermofin 11mm F1129 Series
F1129W2500 2500 watts
456 max reach
190mm between terminals

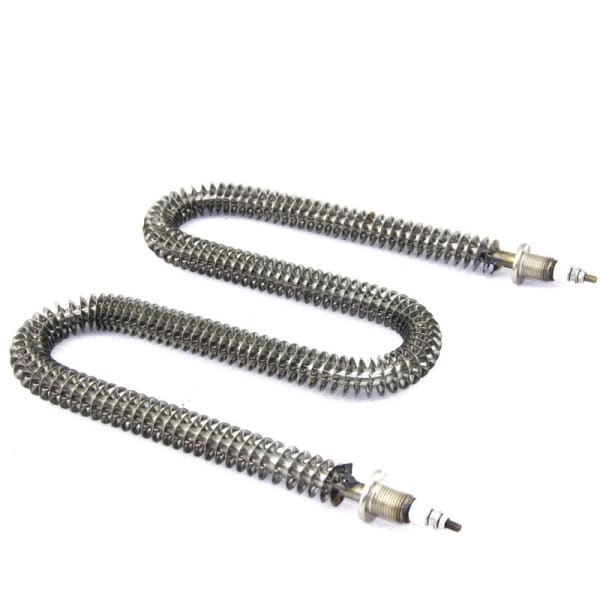

Stainless Steel F1129 Series Finned Air Heaters
Seath Watts Density
Sheath 44.5kW/m2 (29W/in2) Fin and Sheath Total 7.0kW/m2 (4.5W/in2) at 235V
Construction
Continuous spiral stainless steel fin on 10.7mm diameter stainless steel element. Diameter over fin 28mm. Fin pitch 5.0mm
Finish
Annealed 304 Stainless Steel
Mounting
Zinc plated bushing with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.
