F1129W3000 3000w W Form 537mm

Thermofin 11mm F1129 Series
F1129W3000 3000 watts
537 max reach
190mm between terminals

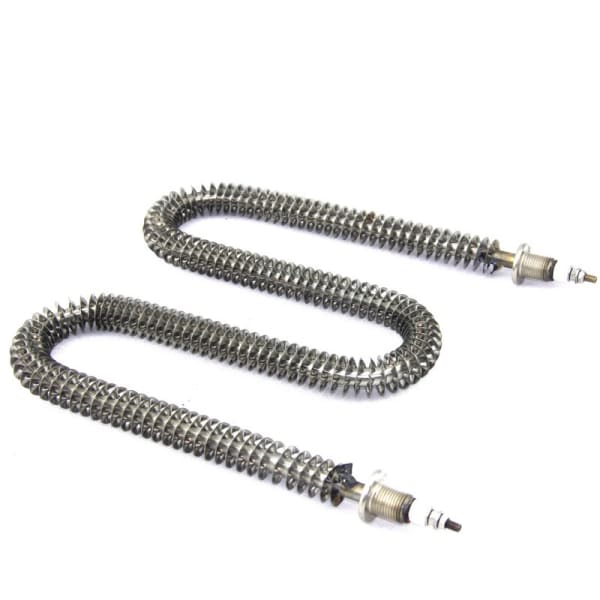

Stainless Steel F1129 Series Finned Air Heaters
Seath Watts Density
Sheath 44.5kW/m2 (29W/in2) Fin and Sheath Total 7.0kW/m2 (4.5W/in2) at 235V

Construction
Continuous spiral stainless steel fin on 10.7mm diameter stainless steel element. Diameter over fin 28mm. Fin pitch 5.0mm

Finish
Annealed 304 Stainless Steel

Mounting
Zinc plated bushing with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.
