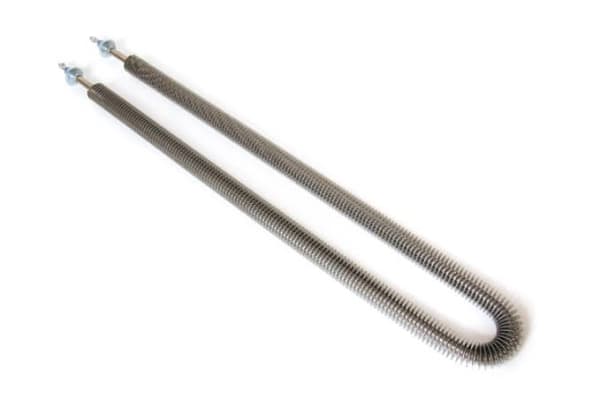

F1129U1500 1500w U Form 548mm

Thermofin 11mm F1129 Series
F1129U1500 1500 watts
548 Max reach
63mm between terminals

Stainless Steel F1129 Series Finned Air Heaters
Seath Watts Density
Sheath 44.5kW/m2 (29W/in2) Fin and Sheath Total 7.0kW/m2 (4.5W/in2) at 235V

Construction
Continuous spiral stainless steel fin on 10.7mm diameter stainless steel element. Diameter over fin 28mm. Fin pitch 5.0mm

Finish
Annealed 304 Stainless Steel

Mounting
Zinc plated bushing with M16 thread 16mm long. Clearance hole of 18mm required. Nuts & washers included.
