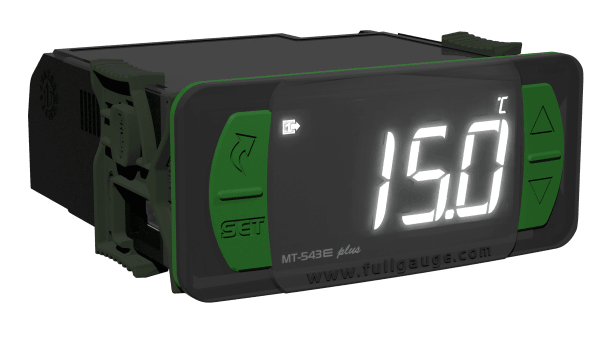

Thermostat MT-543E Plus – Four-Stage Digital Controller
Description
The MT-543E Plus is a four-stage digital temperature controller for heating and refrigeration applications. Its configurable outputs provide temperature control, minimum ventilation, cyclical timing and alarm functions in one compact panel-mounted unit.
The first stage includes a soak function, allowing up to five temperature setpoints to run in sequence, each for a programmed duration. Compatible with NTC and PT-100 temperature sensors, the controller also features an internal audible alarm and serial communication for connection to Sitrad supervisory systems.
Features
-
Four-stage control: Configurable heating, refrigeration, ventilation, timer and alarm functions.
-
Soak function: Up to five sequential temperature setpoints with individual operating times.
-
Cyclical timer: Configurable on/off cycling through the third stage.
-
Alarm functions: Fourth-stage alarm output and internal audible buzzer.
-
Adjustable settings: Setpoints, hysteresis and timing parameters.
-
Function lock: Helps prevent unauthorised changes to control settings.
-
Control shutdown: Disables control outputs while retaining the temperature display.
-
Temperature records: View and clear recorded minimum and maximum temperatures.
-
Serial communication: Supports integration with Sitrad supervisory systems.
-
Configurable display: Select °C or °F, with an adjustable digital filter.
Specifications
| Specification | Details |
|---|---|
| Model | MT-543E Plus |
| Control stages | Four |
| Applications | Heating and refrigeration |
| Sensor compatibility | NTC thermistor or PT-100 |
| NTC measurement range | −50°C to +200°C* |
| PT-100 measurement range | −99°C to +300°C |
| Power supply | 115–230 Vac or 12/24 Vac/dc, depending on model |
| Output contact rating | Maximum 5 (3) A at 250 Vac |
| Temperature units | °C or °F |
| Mounting | Panel mounted |
| Audible alarm | Internal buzzer |
| Communication | Serial interface for Sitrad |
Applications
Suitable for multistage temperature control systems, air conditioning, data centres, beer brewing and temperature-controlled storage.
Please Note
NTC measurement up to +200°C requires the SB59 sensor, sold separately. PT-100 sensors come with this thermostat.
Sensor cables can be extended up to 200 metres using PP 2 × 24 AWG cable, in accordance with the manufacturer’s instructions.
Confirm the required power supply version and sensor before ordering. Refer to the manufacturer’s manual for full operating parameters and electrical requirements.
