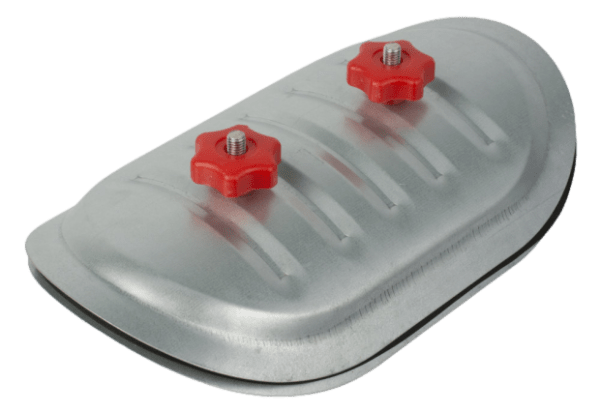

Access Panel Curved 630Ø Duct
Indent 1-2 days
$76.09
Description
Product Overview
The Airflow Curved Access Panel – 630Ø Duct provides a simple, secure way to create an inspection opening in 630mm round ventilation ducting.
Designed for use in HVAC systems, it provides convenient access to fire dampers, volume control dampers and other duct components that require inspection, servicing or cleaning. The self-adhesive installation template simplifies fitting, while the integral cellular sponge gasket provides a positive seal without the need for rivets or screws.
Suitable for both spiral and straight-seamed circular ducting.
Specifications
| Specification | Details |
|---|---|
| Product Code | APC630-400-300 |
| Product Type | Curved Duct Access Panel |
| Duct Size | 560mm Round |
| Door Size | A = 400mm, B = 300mm |
| Material | 0.7mm Galvanised Steel |
| Finish | Mill Finish |
| Colour | Silver |
| Gasket | Cellular Sponge Gasket |
| Door Panel | Removable |
| Locking Knob | Red or Blue |
| Installation Template | Self-Adhesive Template Included |
| Suitable Duct | Spiral & Straight-Seamed Circular Duct |
| Maximum Pressure | 20 in. w.c. |
| Temperature Range | -20°F to 200°F (-29°C to 93°C) |
| Fire Rating | Not Rated |
Suitable For
- 630mm circular ventilation ducting
- 630mm circular air conditioning ducting
- Access to fire dampers
- Access to volume control dampers
- Access to shut-off dampers
- Inspection and maintenance of HVAC duct systems
- Duct cleaning access
