Linear Bar Grille Removable Core 600x100

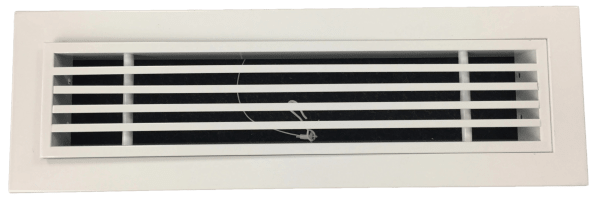

Linear Bar Grille with Removable Core Neck Size 600x100

Our Linear Bar Grille with Removable Core is designed to offer both elegance and practicality for your air distribution needs. Featuring an easy-to-maintain removable core, these grilles are perfect for wall applications, whether used for supply or return air. The versatile design ensures they fit seamlessly into both residential and commercial settings.

Key Features:

• Removable Core: Simplifies maintenance by allowing easy removal and cleaning, ensuring continued system efficiency and hygiene.
• Deflection Options: Bar grilles are 0° deflection, allowing for optimal air direction and distribution.
• Ideal for Wall Applications: These grilles are specifically designed for wall installations, perfect for both supply and return air purposes.

Specification:

• Construction: Removable Core Bar Grilles are constructed from extruded aluminum sections.
• Blade Spacing: Blades are spaced at 12.5mm as standard.
• Finish: Grilles come with a durable powder coat White finish, offering a long-lasting, sleek appearance that complements any space.

The Linear Bar Grille with Removable Core is an ideal solution for those looking to combine high-quality performance with ease of maintenance, while maintaining an aesthetically pleasing design.

---

Specifications:

Dimensions Neck (Length / Depth / Width) = 592mm / 50mm / 92mm

Dimensions Face (Length / Depth / Width) = 640mm / 50mm / 140mm

Dimensions of Removable Core (Length / Width) = 585mm / 85mm

Flange Thickness = 25mm

Material = Steel

Finish = White Powder Coat

Thickness of Face Plate = 5mm

Dampenable at Grille Face = No
