Heat Pump Ground Base 450mm (each)

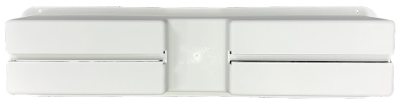

450mm Plastic Mounting Base

Note: Please note these bases are sold singly
If you would like to order a pair, please select 2 in quantity.

These 450mm plastic mounting bases are made from coloured plastic that matches the colour of outdoor air conditioning units.

The mounting bases have groves running laterally that allow an M8 hex bolt to be fixed in any position up to 175mm from the end. With fixing holes at each corner to allowing the bases to be easily secured to the ground.

Each base comes with 2 x M8 Hex bolts (25mm), 2 x M8 Hex nuts, 4 x M8-16 Flat washers.



Specifications:

Flange Length = 445mm

Base Length = 415

Flange Width = 115mm

Base Width = 85mm

Each Upstand Length = 175mm

Height = 75mm
