Axial Plate Fan 250Ø 2P 1P 230V Induced (Supply)
Available from Stock
Description

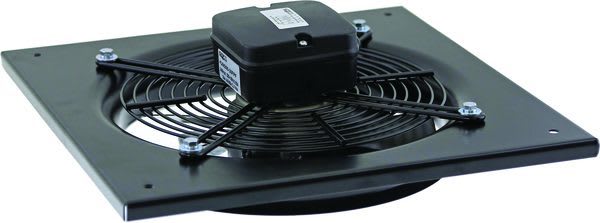

Mosswyn Air Square Plate Axial Fan – Recessed Type 250mm
The Mosswyn Air 250mm Square Plate Recessed Axial Fan is a compact, heavy-duty axial fan designed for general ventilation and equipment cooling applications.
Featuring a robust black coated sheet-steel impeller, external rotor motor and recessed mounting plate, this fan provides reliable airflow in a compact assembly. The motor is protected to IP44, with Class F insulation and internally wired overload protection for dependable operation.
The recessed plate design incorporates a protective wire grille and is suited to applications where a durable, high-airflow axial fan is required.
Specifications
| Specification | Details |
|---|---|
| Fan Type | Square Plate Axial Fan – Recessed |
| Impeller Diameter | 250mm |
| Plate Size | 370mm x 370mm |
| Voltage | 230V, 1 Phase |
| Voltage Range | 198–242V |
| Motor Current | 0.43A |
| Motor Power | 95W |
| Motor Speed | 2480 RPM |
| Motor Protection | IP44 |
| Insulation Class | Class F |
| Impeller Material | Black coated sheet steel |
| Free Air Performance | Approx. 220 L/s |
| Operating Temperature | -30°C to +60°C |
| Airflow Direction | Induced |
| Overload Protection | Internally wired |
The manufacturer’s data sheet confirms the 0.43A, 95W, 2480 RPM induced-air model and operating temperature range of -30°C to +60°C.
Typical Applications
- General ventilation
- Evaporators
- Condensers
- Chillers
- Water coolers
- Equipment and machinery ventilation

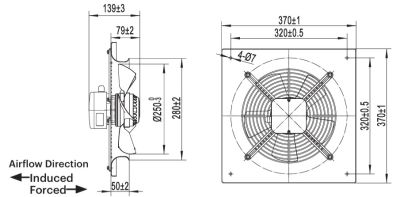

Airflow Direction
Induced Air
Air is drawn through the fan toward the motor side, as shown in the airflow-direction diagram on the manufacturer’s data sheet.
