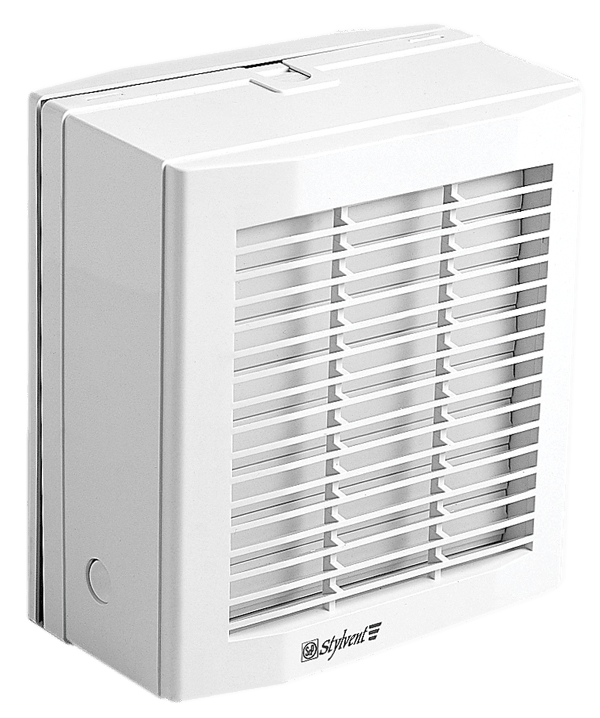

Stylvent Window or Wall 300 Exhaust Fan

Stylvent Series – HV-300AE

The Stylvent Series can be wall or window mounted, making it suitable for a wide range of residential and commercial ventilation applications — from conference rooms, living areas, and restaurants to swimming pools and shower rooms.

Models are available for exhaust or supply air, offering quiet, efficient, and reliable operation.

---

Construction

All units feature weather and impact-resistant housings with integral shutters for durability and long service life.

---

Motors

• Type: 300 – external rotor motor

• Power Supply: 220–240V, single-phase, 50Hz

• Bearings: 300 – sealed-for-life ball

• Max. Ambient Temp.: 230 – 50ºC

• Motor Protection: 230 – IP44

---

Internal Thermal Protection

• 230 – auto-reset type

---

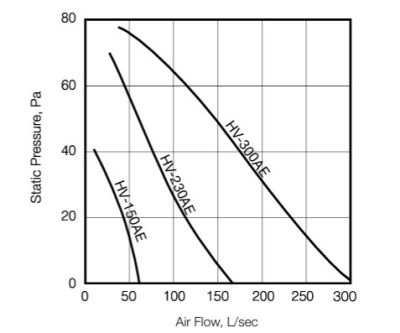

Performance (HV-300AE)

• Airflow: 306 L/s

• Fan Speed: 1150 rpm

• Sound Level: 46 dB(A) @ 3m

• Power Input: 68 W

• Voltage: 230–240V

---

Special Features

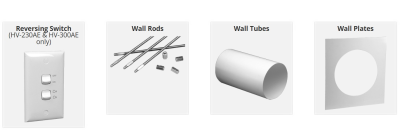

• ‘AE’ Range: Can be wired for exhaust or supply air. Dual mode operation available on HV-300AE with an optional reversing switch.

• Wall Mounting: Optional kit with threaded rods and sleeves for walls 25–300mm thick.

• Rated for Continuous Run operation.

• Easy to clean removable cover.
