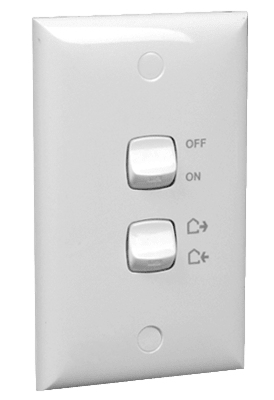

Stylvent Wall Reversing Switch

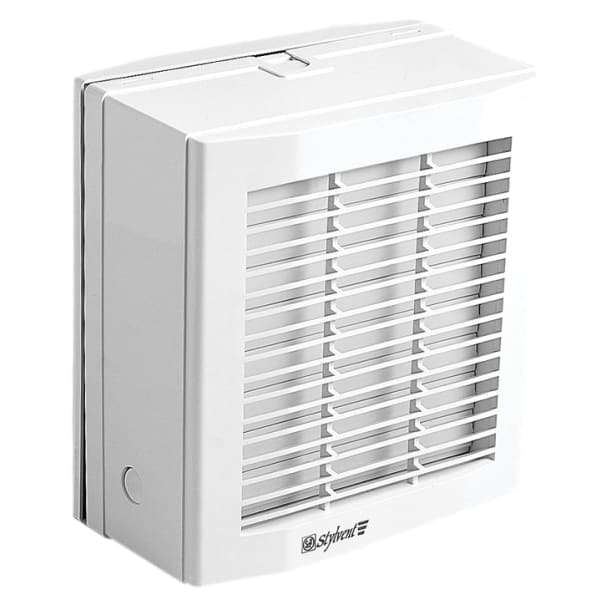

A Stylvent reversing switch is an optional accessory for the Fantech Stylvent HV-230AE and HV-300AE fans that allows them to operate in both supply and exhaust modes. This wall-mounted switch, officially known as the SRS Reversing Switch, is designed to enable the fan to pull air in or push it out by reversing the direction of the motor's rotation.

How it works

• Dual function: By default, the Stylvent fans (models 230 and 300) are wired for exhaust mode only, but adding the reversing switch allows the user to switch between supply and exhaust functionality.
• Installation: The switch is a surface-mounted unit that requires a recess of about 25mm for installation and uses a standard 240V, single-phase, 50Hz power supply.
• Usage: Once installed, the switch allows the fan to be manually changed to operate in either direction, enabling it to be used for both bringing fresh air in and expelling stale air out.

Key features

• Compatibility: The switch is compatible with specific Stylvent models (HV-230AE and HV-300AE).
• Mounting: It is a surface-mounted switch with an IP30 enclosure rating.
  The SRS Reversing Switch is recess mounted, has an enclosure rating of IP30 and has a 70W × 114H switch plate. A recess depth of 25mm is required for mounting.
• Power: Operates on a 240V, single-phase, 50Hz supply.
• Function: Reverses the motor's rotation to change airflow from exhaust to supply, or vice versa
