FEATURES

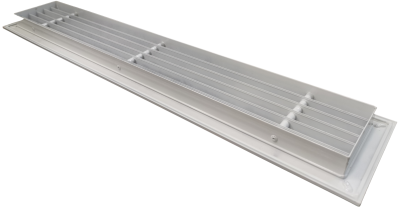

• One piece construction of the diffuser eliminates unsightly joins.
• Attractive molded diffuser is scratch resistant and will not corrode or deteriorate with age.
• Fast, easy installation.
• Significantly lower cost than aluminum diffusers.
• Will fit commercial ceiling grids.
• Easy to clean removable grille frame.
• Lightweight ridged construction.
• Standard ceiling white.
• Paintable.

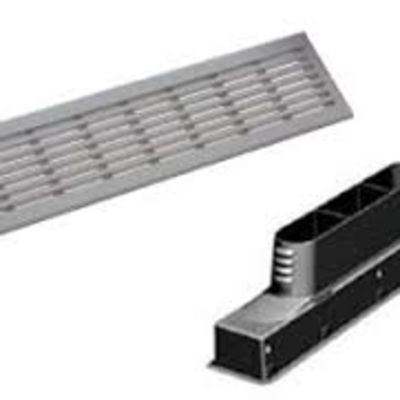

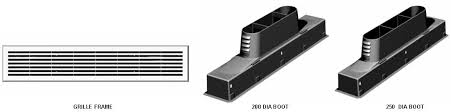

• Boots available in 200 DIA and 250 DIA connections.

CONSTRUCTION

• The diffuser is molded from white ABS plastic.
• The boot/adaptor black ABS plastic.
• The boot clips are constructed from Acetyl plastic.

APPLICATIONS

• Ideal for light commercial reverse cycle air conditioning systems.
• Suitable for ceiling, commercial T-Bar, bulkhead, and wall
• Suggested cut out 90mm x 570mm for boots.

Grille only installations will require a smaller cut-out hole for grille neck.
