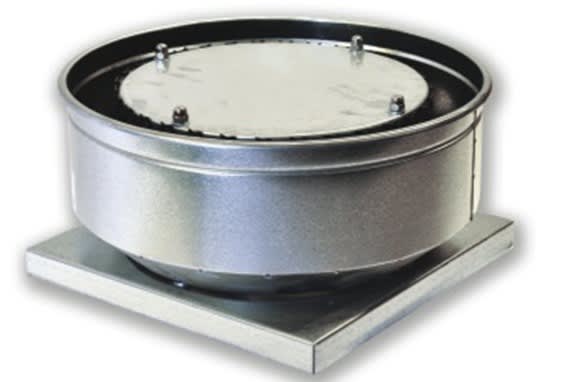

Kitchen Exhaust Centrifugal 560Ø Roof Fan

MCV560-4D 415V Kitchen Exhaust Roof Fan 4 Pole
Motor: 415V 50Hz 3 Phase 4.1 Amp Full Load Current 1320 RPM
Centrifugal impeller
Performance tests are in accordance with BS848 Part 1 (1980) and AS2936 - 1987
Total Motor Wattage: 2.16kW
Sound level at 3m [dB(A)] Free Field: 69
Fully weather proof galvanized steel ventilated housing with grease trap connection
Free Air Fan Performance: 2300 l/sec @ 350pa
Impellor Diameter: 560mm diameter
Suitable for high temperature kitchen exhaust systems
Mountings: 720mm base off bottom of fan unit

Backward curved centrifugal impeller with high quality external rotor motor for high pressure exhaust applications.
- Fully weather proof galvanized steel housing
- Sealed for life ball bearing motors
- Bird mesh guard
- Painting or colour matching optional extra
- Suitable for high temperature kitchens
- Suitable for vertical installations
