Lossnay Single Room Ductless Fresh Air Ventilation

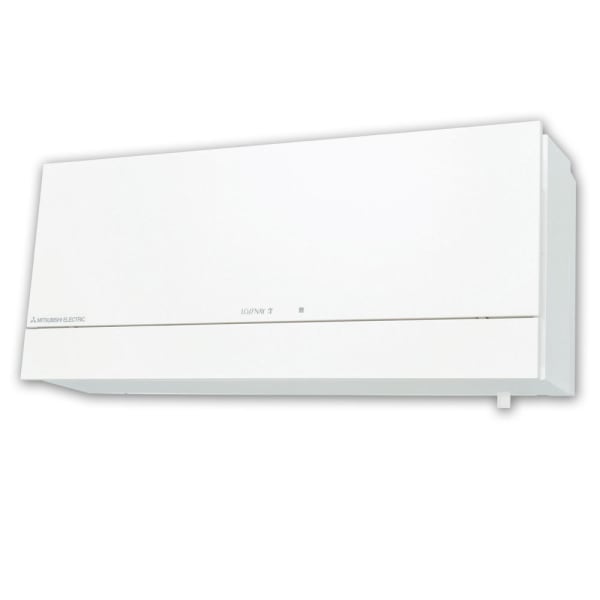

The wall-mounted VL100 Lossnay Fresh Air Energy Recovery Single Room Ventilation unit provides energy efficient ventilation to ensure individual rooms have a constant supply of healthy, fresh air with the additional benefit of energy efficient heat recovery at the same time. And because the unit is ductless in design, it means the system is ideal for homes and buildings where there is no roof space to install a heat exchanger.

Wall Mounted

This wall mounted unit provides an effective balanced pressure ventilation solution for a specific area up to 88m²*. Lossnay recovers energy from the air being transferred to pre-warm (or pre-cool) the fresh air drawn into the room. As a result, moisture build-up is minimised and a warmer, drier and healthier indoor environment can be maintained all year round. Because this model is ductless in design, it is ideal for applications where there is no roof space to accommodate the heat exchanger and duct work.

---

Key Specifications of the VL100 Wall Mount

• Up to 80% heat exchange efficiency
• Simple installation by drilling two 85-90mm diameter installation holes
• Low noise operation from 25dB on low fan speed
• Easy to clean filters
• Ideal for residential or small commercial applications where there is no roof space

^*m² room / area calculated at 0.5 air changes with ceiling height of 2.4m.

---

Specifications

Dimensions (WxDxH, mm): 620 x 200 x 265

Weight: 7.5 kg

Power Supply: 230V +/- 10% / Single Phase / 50 Hz

Input Power (Fan Lo-Hi): 15 - 31W

Air Volume (Fan Lo-Hi): 16 - 29 l/s

Noise (Fan Lo-Hi): 25 - 37dBA
