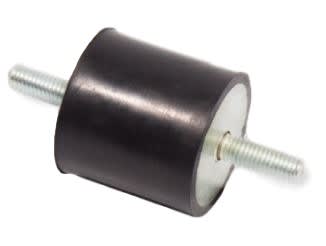

Isolator Bobbin TA50/45

Indent 1-2 days

Category

Bobbin Isolators

Code

TA50/45

Brand

RRP

$61.00

Minimum quantity

1

$45.04

Description

A supplementary range of cylindrical mountings for a wide range of applications. They can be loaded either in compression or shear taking into consideration individual demands for actual applications.

Manufactured in natural rubber hardness 40oIRH or 60oIRH .

A - Length 45mm
D - Diameter 50mm
Durometer - IRH 60
Stud Size M10x25
Max Load - Compression 149kg
Max Deflection - Compression 5.7mm
Max Load - Shear 58kg
Max Deflection - Shear 12.9mm
